TBDP©/VBDP© Version 8 - What's New!
About TBDP | Features | How it Works | Design Inputs | Screens | VBDP | Testimonials | Mag Reviews | Updates | Order
TBDP© Version 8 Released!                                                                  [see complete updates list]

ALL the standard TBDP standard features...PLUS...

Some of the cool NEW features added to the TBDP©/VBDP© software in Version 8 include:

1. NEW VBDP© - a most significant NEW element is the incorporation of the NEW “Vee Boat Design Program” full-featured software for “Vee hull and Vee-Pad hull” performance analysis. Users asked for Vee hull design capability, and so we’ve now included it! So the TBDP© now also includes the full VBDP© as part of the software package!

2. NEW Auto Convert program to translate your older TBDP© design data files to the new TBDP©/VBDP© data format – so you easily update your previous design files with new advanced format.




Complete Vee Boat Design Program

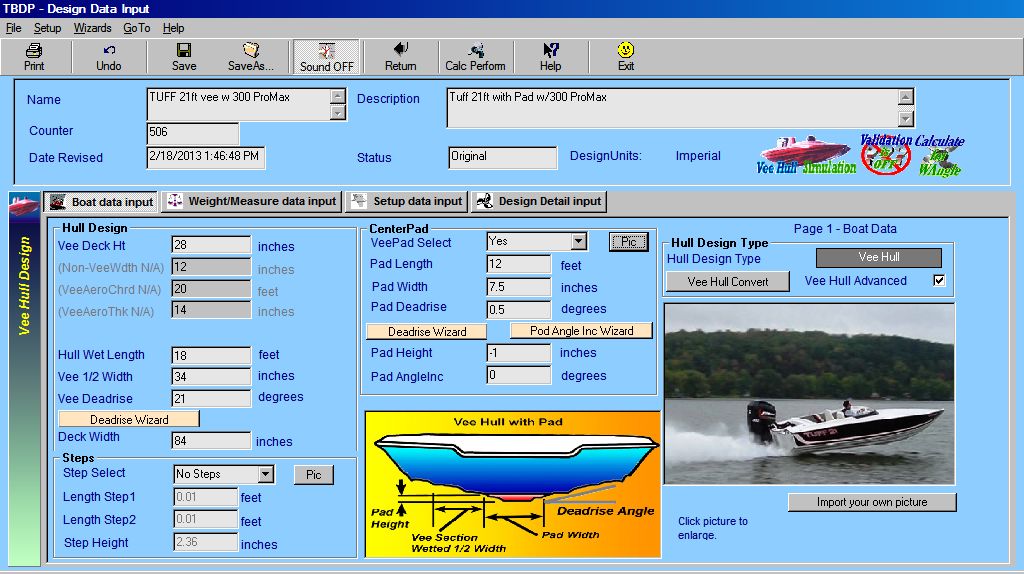

Input Screen (sample)


3. More (100+) Input variables, more performance data output information (500+ data points), for more flexible design control and even more performance reporting information - including new Whisker Spray Drags (for sponsons, Center Pod, Vee, veepad); Lift/Drag Ratios (for sponsons, center pod, Vee and Veepad), separate Wetted Area data (SWet) for sponsons, center pod, Vee and Veepad; separate drag coefficients for CDWSponson, CDWVee, CDWPod, CDWPad, Trim Tabs lift/drag/coefficient/Aspect Ratio; along with all the other performance measures that TBDP©/VBDP© has presented in previous versions.



More Performance Output screens, 490+ data points, 50+ graphs, showing each performance result as it changes throughout full operating velocity range!

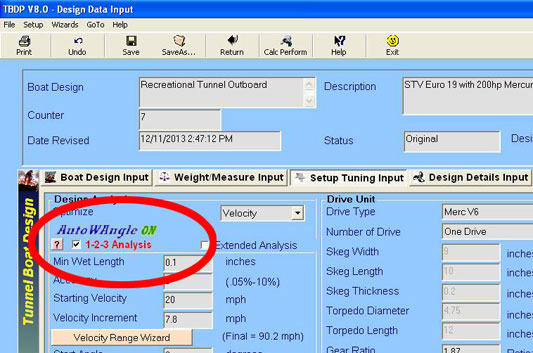

 4. NEW “Auto 1-2-3 Performance Analysis" Wizard - automatically steps you through the 3 steps of performance analysis, to calculate Maximum Velocity, Trim Angle analysis and Power (Acceleration/Elapsed Time analysis) with simple guided button clicks. [GREAT NEW FEATURE used all the time by our power-users!]

It's as easy as 1-2-3 to get the highly accurate performance prediction of your boat. [click here to see how it works] OR check out the "Auto 123 Performance Analysis" video...


TBDP© V8, "Auto 123 Performance Analysis video



Auto 1-2-3 Wizard steps through
easy steps for full Performance Analysis


5. “Porpoise Analysis” - A breakthrough is the addition of a unique AR® “XPorpoise” feature that automatically shows your hull's susceptibility to porpoising, based on your hull design, configuration, setup, and operating conditions - assessed throughout the full operating velocity range.

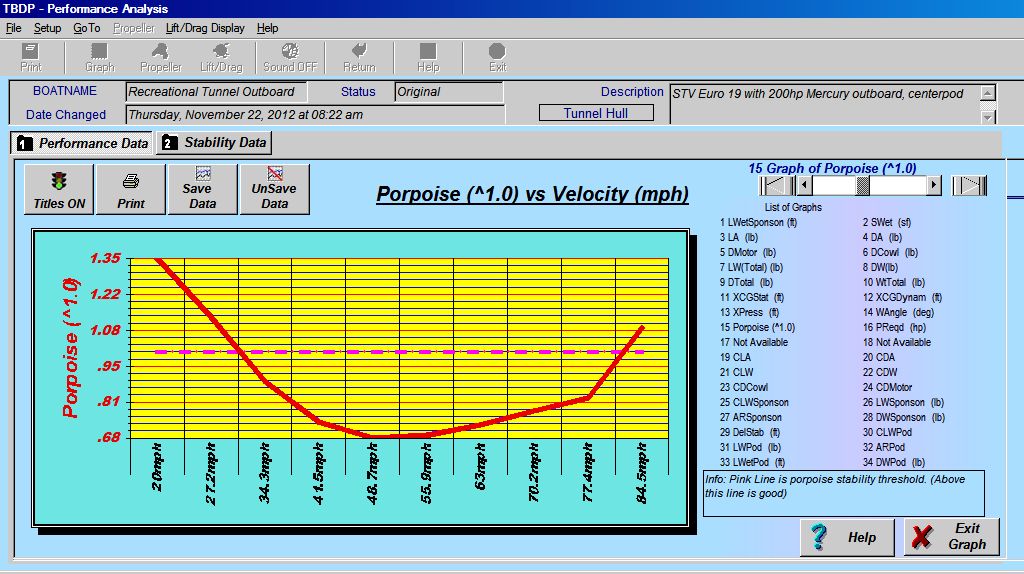

Porpoise Analysis Graphic Report Screen

6 NEW “Performance Analysis Wizard” (Report Writer) - A powerful design-based Report that automatically compiles a narrative summary of your unique key performance characteristics of your performance analysis, including highlighting of important performance & design features and design/setup situations that may require consideration or correction, and even recommendations.

Each Performance Analysis Summary Wizard notes is different, uniquely generated for the specific design, setup and operating conditions input, and compiled based on unique performance results - so every summary has exclusive highlights, comments and recommendations for your design.

Every time you run the TBDP©/VBDP© a new Performance Analysis Summary report is presented with summary results and related recommendations for your design, setup and analysis.




Performance Analysis Wizard
(auto Report Writer)
7. NEW “2016 Motor Wizard” feature includes over  OEM engine specs in a selection database, making input of your engine data to TBDP©/VBDP© as simple as picking your motor from a list. Now including new Evinrude G2, new Ilmore V8's, Jetdrive Outboards, Yamaha 350hp V8 Outboard, Evinrude V6 E-Tec's, New Mercury 350hp Sci Verado And Optimax ProXS engines, all the Mercury, Mercury Racing, Evinrude, Tohatsu, Susuki, Nissan, Honda, even Mariner, OMC, Johnson, Mercruiser, Steyr, OMC, Volvo Penta.
"Motor Wizard" – Selection Screen

8. NEW
Whisker Spray analysis - Advanced hydrodynamics and Whisker Spray drag analysis gives highly accurate drag contributions to powerboat performance predictions & optimization.  Added new performance report variables showing all whisker drag components with individual drag coefficients.


Advanced "Whisker Spray" drag analysis

9. Quick Design Wizard makes it easy to start your design by selecting one of many 'typical' design outlines. Sample designs are included in TBDP©/VBDP© database (with full Input dimensions and setup details) for 'Performance Tunnel hull/Power cat', 'Recreational Tunnel Outboard’, 'Offshore Fishing/Utility', 'Racing tunnel', 'RIB tunnel', 'RC tunnel', 'Vee hull' and ‘Vee-Pad’ designs. Modifications for your own design are automatically input - dimension and setup design arrangements are automatically applied to all the design input fields.

Tunnel Boat Design Software by AeroMarine Research

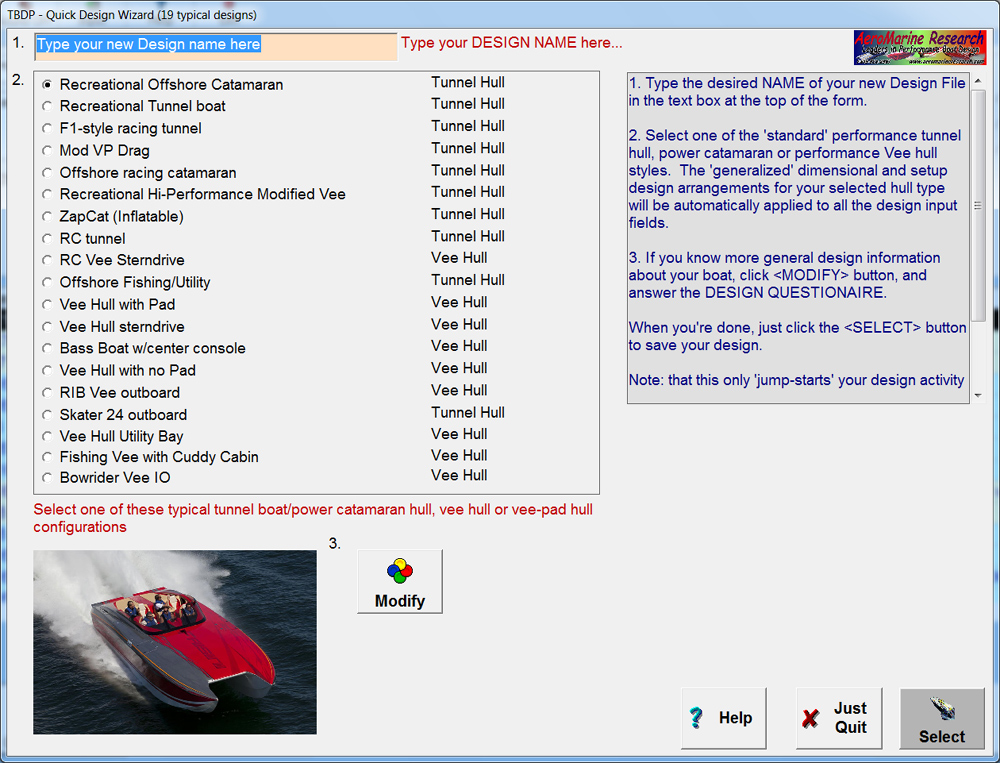

"Quick Design Wizard"
 just select complete hull design

10. Ten NEW Design Wizards - Propeller Wizard; Motor Selection Wizard; Miscellaneous Payload Weight Wizard; Angle Increment Calculator; Quick Design Wizard; WAngle Calc Wizard; Deadrise Wizards; Power Calc Wizard; Velocity Calc Wizard; Expanded Wizard Tutorial and the extraordinary Performance Analysis Wizard (Report writer).


11. “Design-versus-Design Comparison Graphic” screens, a great feature to compare the performance of any design feature(s), 'before-and-after'; or comparing the performance results of 2 (or many) design features. Make a single design or setup change, or make many changes to your arrangement and see the direct performance comparison of the modified design to your original design.


"Design-versus-Design"

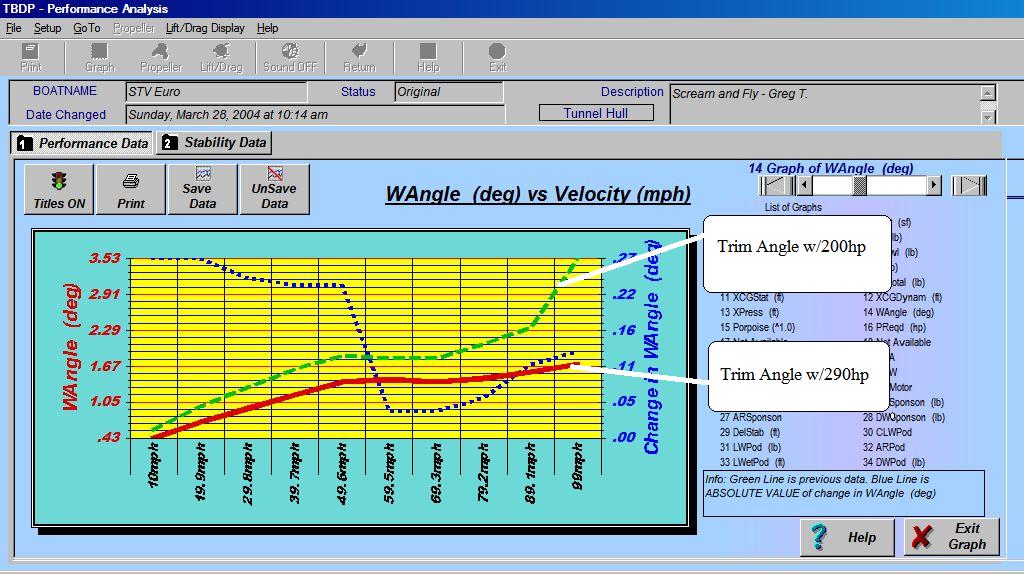

Comparison Graphic Screen

12. Advanced Cockpit drags - NEW analysis for aerodynamic drag resulting from the exposed cowlings, fairings, cockpit openings and/or cockpit covers, including profile drags, friction drags and NEW contribution from complex cavity drag.

NEW Advanced Cockpit/Cowling/Fairing drag now includes complex Cavity Drag analysis. NEW multiple cockpit/cowling design configurations to select from, including Open, Covered, Race Canopy, Cockpit w/Windscreen, even a Cuddy Cabin



Cockpit/Cowling/Fairing analysis considers profile, friction and even complex cavity drag




13. TBDP©/VBDP© now calculates hydrodynamic drag of ANY lower unit design; includes standard design specs for 40+ OEM drives, including NEW massive Yamaha and Mercury R400 and HD 300-350hp drives, Merc TorqueMaster, SportMaster, and FleetMaster drives; Merc M8 and drysump outdrives, Merc Verado 350Sci HD, Merc SSM4, Merc SSM6, Nissan & Tohatsu SportC, Tohatsu 50HP D-Stock foot, Suzuki DF and Evinrude ETec HO gearcases, Alpha, Bravo, Volvo IO drives, IMCO SCX drives, Ilmor Indy drives, Arneson surface drives, even RC outdrives.


Tunnel Boat Design Software by AeroMarine Research
 Auto drive selection of
OEM drive dimensions


14. Trim Tabs, Spray Rails & Lifting Strakes - TBDP©/VBDP© now includes the use and analysis of Trim Tabs, Spray Rails and Lifting Strakes in your hull setup, and shows individual contributions to performance.
[this was another request from our TBDP©/VBDP© users]

Analysis of Spray Rails and Lifting Strakes, based on Jim Russell's engineering design paper and published article. Capability of Below-Chine Spray Rails (deflectors) for Whisker Spray reduction and Above-Chine spray rails and effects on Sheer (friction) Spray Drag.




Spray Rail and Lifting Strake
Analysis

15. Enhanced calc for CGDynamic (dynamic stability) for cases of Vee hull with Pad and Tunnel Hull with Center Pod, more accurate for all design configurations and operating conditions.

16. Propeller sizing can be obtained based on your design performance, motor specifications, engine RPM and propeller pitch is predicted by TBDP©/VBDP© based on your design/setup and operating performance.

17. NEW On-Line HTML HELP screens, with Context sensitive access, index and search, with samples of actual screens and even suggestions for how to apply the topic to your design. [Now over 140+ Windows 7/8/10 compatible Help screens]

18. NEW 125+ page User’s manual, over 27,000 words of tutorials & HELP illustrations detailing every feature of TBDP©/VBDP© Version 8.

19. FREE Expert Performance Analysis Reports of American Offshore AO3100, STV Euro19, Cougar 21MTR, Charger 16DL Vee hull and Prowler Utility 246 boats - using TBDP©/VBDP© software with complete output data. Full sample Reports of TBDP©/VBDP© performance analysis of typical hull designs.

20. “User Picture Import” - ability to import your own boat picture into the software as a (reference) pictorial part of your design file record.

21. “Auto Bottom Design” - for Vee hull design, bottom dimensions are automatically adjusted when a “pad” is added or removed (helpful for easy pad vs. no-pad comparisons). For tunnel hulls, auto adjustment for center-pod changes.

22. “Automatic Static CG” on-screen Calculation for any hull configuration - overall boat STATIC CG is calculated every time you make a change, and shown on input sub-screen.

23. NEW "Change in Value" (derivative of the performance measure) feature on graphic performance results screens & reports – makes it even easier to see break points of performance issues, showing “how fast is it changing” data.

And a long list of other great new features and enhancements, including:

Dozens of other new features and design options include:

  • Improved aerodynamic algorithms; even more accuracy, even more hull configurations

  • Improved drag algorithms for more types of cockpit and cowling configurations

  • Symmetrical or asymmetrical sponsons

  • On-screen display of automatically calculated total hull weight and cg

  • Multiple spray rail design selection

  • Aerofoil dimensions view feature

  • Multiple step selection design frame

  • Minimum wetted sponsons/vee surface length

  • Maximum wetted sponsons/vee surface length

  • CG on-screen calculation

  • Automatic wangle increase

  • Automatic blowover check & alert

  • Automated 'head/tail wind' simulation

  • Centerpod wangle input

  • Accurate top speed prediction

  • Acceleration modeling with elapsed time prediction

  • Angle increment calculator

  • Velocity range calculator

  • Motor height calc's

  • 50+ color graphic performance charts.

  • Water type selection

  • Altitude selection

  • Euro units version with auto conversion between USA & metric for inputs and performance results

  • Multiple engine/drive applications

See the rest of the TBDP© and VBDP© software capabilities and features at: aeromarineresearch.com/tbdp6_features.html
