TBPNews #117 – Mar. 8, 2008
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
>>>> Tunnel Boat Performance News
>>>>>> (over 5000
members!)
========================================================
In this issue:
1) Finnish Selio Wins UIM F1 World
Championship
2) FEATURE
ARTICLE: "Why do the boats create rooster tails?"
3)
Cowes-Torquay-Cowes race to run again
4) 17 Unlimited Hydroplanes are possible for 2008
season
5) Mercury Racing introduces
new Verado 350 SCi outboard
6) NEW Powerboat History & Design
Books On-line
7) 2008 Software Update
Includes New Yamaha
350hp V8 & Mercury 350hp Verados
9) Jimboat's NEW Feature Articles
******************** TBPNews
*******************
1) Finnish Selio
Wins UIM F1 World Championship
SHARJAH,
United Arab Emirates - Selio wins Sharjah and is new world champion -
For the first time in 8 years, the name on the UIM.
F1 World Championship Trophy for world champion will have neither Scott Gillman
or Guido Cappellini on it's face as Finnish star Sami Selio made a statement
that he is the driver of “new era” by taking the title while winning his 2nd
straight in the Emirates and his 3rd of the year taking the 2007 title.
Guido Cappellini came into the event with a great shot at gaining his 10th
overall title in his 18th year of racing, needing to only place 6th or better,
but he ran into his same bad luck that has plagued him for 5th time in 6 years,
failing to finish, this time with a blown engine and ending his season again in
tears on the 39th of the 50 scheduled laps.
The only accident of the race came early in the first lap when ex-World Champion
Fabrizzo Bocca of the Rainbow Racing team crashed out on the north side of the
race course barrel rolling to a stop and ending his season in 12th place in the
championship with 15 points.
The 8th month journey for the UIM. F1 World Championship for power boating
began in Portimao, Portugal in May and ended in the late afternoon darkness in
December with a new driver enjoying the taste of the World Championship glory,
Sami Selio. The 31 year-old native of Helsinki, will now join 9 other drivers in
the select group that can be called “World Champion”.
The start of the 2008 campaign for the UIM. F1
World Championship for power boating will begin in March in Doha, Qatar.
check out more at:
f1boat.com
******************* TBPNews
*******************
2) FEATURE ARTICLE: "Why do the boats create rooster tails?"
FAQ: This question comes to us from one of our readers (DS)- "Why do the boats create rooster tails".
Response: I've had many people ask me about the "lost energy" in a performance boat's roostertail. You are all right - there is a lot of energy to pump that much water into the air.
Definition: "Rooster-tail - A projected mass of fine particles of water, having an arced shape similar to that of a rooster's tail."
The
rooster tail is the result of propeller hydrodynamics - the displacement of
water used to generate the thrust to propel the boat forward at great speed.
Present day engines can have huge power capability, and it's a challenge
to transport this energy as thrust for forward motion of the boat. For
example, the 200 hp or so of engine power is converted through an outdrive to
thrust of about 1300 pounds (or more) at 60 mph. That load is pushing against
the water. Some of the water just can't stay where it belongs, especially if the
angle of the trim is trying to push the bow of the boat up - and hence the water
at the rear up too! So this is why thrust is more efficient when the motor
drive is trimmed "in", with a "thrust-line" angling down into the water.
Surfacing propellers also contribute to "rooster-tails". The surface piercing
propellers run half in and half out of the water and usually display a rooster
tail into the air behind the boat. While these surface-piercing props experience
much less drag and are much less susceptible to cavitation, they also expel a
certain amount of water "normal" to (straight up from) the water surface. Since
this happens as the prop also generates forward thrust at the expense of the
static water, the result is a "flow" of water up and back from the propeller.
Propeller shaft depth and thrust (trim) angle can
affect the efficiency of your propeller thrust, and is often illustrated in how
much of a rooster tail you see. Propeller design features also have an affect on
thrust efficiency and thus, on the view of the rooster tail. Generally, however,
the more "rooster tail" we see, the more INefficient is the trust.
For
example, propellers designed to generate bow lift (eg: high rake) can operate to
direct the "thrust cone" of your propeller to be more "narrow" or more focused.
Propellers designed to be "stern lifting" can result in a "thrust cone" to be
more expanded or "fat", expending energy that is not aligned with the direction
of the prop shaft, and shows a more dramatic rooster tail as a result. These
types of setups can have the benefit of lifting the rear of the hull and
reducing overall hull drag - so the tradeoff (less efficient propeller thrust)
can be worth it! Props that have very narrow thrust cones will push more of the
water directly in line with the prop shaft - more efficient thrust - very little
energy is thus wasted and only a small rooster tail will be visible.
Larger diameter and/or smaller pitch props can
usually generate lower rooster tails - but this won't always mean better
performance. It is most always, like everything in performance powerboating, a
trade-off or compromise.

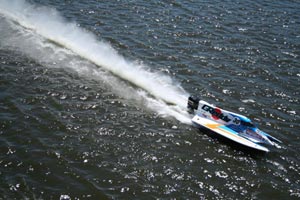

When you see a boat that is well rigged, well
set up and well driven, the rooster tail can give it away! Often the
tell-tale of great setup is NO ROOSTER TAIL! - the "spray" of rooster tail shows
very little loss of energy through the lower unit and propeller setup. The hull
setup is perfect for the speed he is going, and the engine trim angle is perfect
to maintain hull stability and minimize power lost through generation of rooster
tail. It is a picture of beauty to see a boat set up as perfectly as to
see the 'perfect rooster tail'
See more Performance Articles at:
aeromarineresearch.com/articles.html
Read more about Tunnel Boat design and setup in the world acclaimed "Secrets
of Tunnel Boat Design" book
******************* TBPNews
*******************
3) Cowes-Torquay-Cowes
race to run again
The
most famous endurance race in powerboating, the Cowes-Torquay-Cowes (CTC), will
be reintroduced to the sporting calendar in 2008 by the organizers of the
Powerboat P1 World Championship. The CTC, which first ran in 1961, will take
place over the August Bank Holiday weekend and is expected to attract worldwide
interest.
The Cowes-Torquay-Cowes is an open event,
organized in association with the British Powerboat Racing Club (BPRC) and up to
80 craft are expected to participate. The boats will start and finish in Cowes
and the front runners are expected to complete the course in less than four
hours - weather permitting. The Cowes-Torquay-Cowes was the very first offshore
race in Europe and is recognized as one of the toughest challenges in world
powerboating, comparable with the Indy 500 and 24 Hours of Le Mans.
check out more at: powerboatp1.com
******************* TBPNews
*******************
4) 17 Unlimited
Hydroplanes are possible for 2008 season
14
Race teams & 17 Unlimited Hydroplanes are possible for 2008 season - Two new
teams, the U-22 and U-28 race teams, are set to make their debuts in 2008 and a
third team, the U-48 Lakeridge Paving, plans on running a second boat on the
west coast.
Here's the complete list of possibles. If the Spirit of Detroit team decides to
run more than one boat this year - or split the racing duties between the U-13
hull and the newly acquired U-2 hull from Ken Muscatel - that could increase the
number to 17.
| U-1 Elam | ||
| U-3 Cooper | U-10 USA Racing Partners | U-28 New Kid on the Block |
| U-5 FormulaBoats.com | U-13 Spirit of Detroit | U-37 Beacon Plumbing |
| U-6 Oh Boy! Oberto | U-17 Red Dot | U-48 Lakeridge Paving |
| U-7 FormulaBoats.com | U-22 Webster Racing | U-50 TBA (O'Farrell) |
| U-9 Jones Racing | U-25 Superior Racing | U-100 MirageBoats.com |
With that many new boats, the next logical step
is to increase the number of race sites from the current six. Increasing the
number of races is one of the ABRA's top priorities.
Check out more at:
abrahydroplanes.com
******************* TBPNews
*******************
5) Mercury
Racing introduces new Verado 350 SCi outboard
Mercury
Racing announced the introduction of the all-new Verado 350 SCi – the latest
addition to Mercury Marine’s flagship Verado outboard family. The 350 horsepower
in-line six-cylinder engine continues Mercury Racing’s heritage of delivering
more power and performance than competitive outboards with the same horsepower
rating.
From the top cowl to the all-new gearcase, this engine is designed to exceed consumer expectations in product quality, reliability and performance. The 2.6-liter supercharged engine features electronically controlled sequential multi-port fuel injection, four valves per cylinder, double overhead cam design, a charge-air cooler and electronic boost bypass control. The new top cowl design, developed by Mercury Racing, features fresh air intakes at both the top and front of the engine. The custom cool air intake at the cowl top, designed to help maintain consistent engine operating temperatures, draws air into a flywheel-mounted fan. The flywheel fan circulates cool air around the powerhead and associated components. An innovative air scoop, on the cowl front, channels fresh air directly to the supercharger via the air intake attenuator - thereby improving power and performance.
Mercury Racing developed an all-new sand-cast
driveshaft housing for Verado’s revolutionary Advanced MidSection (AMS) for
enhanced durability in the unforgiving offshore environment. Stainless steel
guide plates with fiber wear pads, along with high-performance engine mounts,
result in enhanced engine stability at high speeds. Mercury Racing designed an
all-new gearcase to handle the Verado 350 SCi’s high torque and power output.
Engineers developed a new hydrodynamic shape and size to accommodate the
larger-diameter straight cut gears, heavy-duty 1-1/4” diameter propeller shaft
and billet aluminum bearing carrier.
Check out more at:
mercuryracing.com
******************** TBPNews
*******************
6) NEW Powerboat History & Design Books On-line
Most complete supply of
performance powerboat history, design and racing books...Over 50 unique classic
hardcover books on performance powerboat design, powerboating People, History,
Racing, Technical, Construction and Engineering.
Too many classic books to list here...check out the complete list at
Powerboat Design & History books
check out ALL the new book additions:
Powerboat Design & History books
******************** TBPNews
*******************
7) 2008 Software Update includes New Yamaha 350hp V8 & Mercury 350hp Verados for TBDP© and PropWorks2©
New
2008 Motor Wizard update (AeroMarine Research®) for TBDP© and PropWorks2©
Now over 575 engine choices in Motor Wizard database! [Included with
"Tunnel Boat Design©" software & PropWorks2© software].
The 2008 motor database update now has over 575 engine specs, including new
jet-drive outboards, new Yamaha 350hp V8 outboard, Evinrude E-Tec specs, new
Mercury 300hp & 350hp Verados. Use the New Motor Design Wizard to easily
input the dimensional information for your setup. Just select your OEM engine
manufacturer and highlight your model from the over 575 listed. The published
manufacturers specifications are all there - Mercury Marine, Merc
Hi-Performance, Bombardier Evinrude/Johnson, Yamaha, Suzuki, Nissan, Honda,
Tohatsu, Mariner, Volvo, MerCruiser, Steyr, OMC, Volvo Penta. The OEM factory
correct MaxHP, Height, Weight, RPM and gear ratio will be automatically input to
TBDP V7.9 and PropWorks software V2.9.
Check out more information or
your MOTOR WIZARD© Update at:
aeromarineresearch.com
******************** TBPNews
*******************
8) Powerboat Racing on TV
*** "Thrill Zone: Extreme
Powerboats" -
National Geographic powerboat show.
Author Jim Russell (Jimboat) is powerboat design technical consultant on a new
National Geographic special for "Thrill Zone"
series...
Details at: (channel.nationalgeographic.com)
check out next show date at:
Thursday, March 20, 2008 at 01P and Friday, March 28, 5A
Watch for other show dates on AR's website! aeromarineresearch.com/NatGeo_thrill-zone.html
*** "Streaming Motorsports" on Speedbox.tv - Parker ENZED Jetsprinting Championship - - Check at: speedbox.tv
*** "Champ Boat Grand Prix Series" - on SPEED Channel - Check next show at: www.champboat.com or at: www.speedtv.com
*** "F1 World Championship TV Show" on The Water Channel - Check it out at: www.waterchannel.com; [see web site for other show times]
*** NEW "War On Water" TV Show" on The Water Channel - Check it out at: www.waterchannel.com; [see web site for other show times]
*** "Class 1 – World Championship – 2006" on The Water Channel - Check it out at: www.waterchannel.com; [see web site for other show times]
*** "Offshore Classics" on The Water Channel - Check it out at: www.waterchannel.com; [see web site for other show times]
*** "American Powerboat Television" on The Water Channel - Check it out at: www.waterchannel.com; [see web site for other show times]
*** "Honda Formula 4-Stroke Powerboat Series" - Check it out at: honda-racing.co.uk
[Ed. Note: The Water Channel is available
on The Dish Network]
******************** TBPNews
*******************
9) Jimboat's NEW Feature Articles
NEW
Jimboat Article Announcement! - Author Jim Russell details the secrets of Chine
Walk in performance powerboats- why it happens & how to fix it!
Check out full article at:
aeromarineresearch.com
Jimboat
writes Feature articles in HotBoat, Family&Performance Boating, World of
Powerboats, Extreme Boats magazines.
-
'Walk on the
Wild Side' - "Chine Walk - Why it happens & How to Fix it" - HB-Jan
2008
![]()
- 'Hump
Zone' - "Why does your Boat Porpoise?" - HB-April 2007
-
'The Bottom Line'-"Why does a Pad make a vee Hull faster?" -
F&PB-Sept 2005
- "10
Smokin' Speed Secrets Revealed..." -
HB-Feb2005
-
"Winterizing your Performance Outboard" - F&PB-Jan2005
-
"What a Drag" - 'Trim Angle & Engine Height Can Reduce Drag and
Increase Speed' - HB-Sept2004
-
"10 Safety Tips" - 'Ten Safety Ideas for High Performance Go-Fast
Boats' - HB-Aug2004
- "Flight
Path" - 'Where does Lift Come From?' - HB-April2004
- "Rocket
Science" - 'How To Increase Your Hull's Design Speed With Aerodynamics' -
World of Powerboats-Winter2004
-
"Tunnel
Vision" - 'What Factors Influence Tunnel Hull Performance' - Extreme
Boats-April2003
- "Step-by-Step"
-
'Step
Design in Powerboats' - TBPNews #88, October 2005
******************** TBPNews
*******************
See you next time!
/Jimboat
>>>>>>>>>>>>>>>>>>>>>
[Advertisement...]
MINIMOST &
MINIMAX "Sea Fleas" - In the late 50’s and early 60’s William D. Jackson
introduced the two famous seafleas known today as the Minimost and Minimax.
Plans & Full Size Patterns Now Available! Brian Cranfield at BC Seafleas
now offers full size patterns for replicas of these boats. Included in the
package is a complete set of full-sized patterns, building plans and a booklet
to help guide you through the building process. Contact Brian at:
cranfieldbrian@hotmail.com or 905-986-4868. More
details at: BC
Seafleas web page
>>>>>>>>>>>>>>>>>>>>>
>>>>>> Tunnel
Boat Performance News >>>>>>>>>>>>>>
Let us know ideas you have, requests for articles, questions or comments on TBPNews. Send
comments to TBPNews@aeromarineresearch.com
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Get your full, illustrated,
13th
edition copy of the world acclaimed "Secrets
of Tunnel Boat Design" book; "History
of Tunnel Boat Design" book, "Secrets
of Propeller Design" book, the "Tunnel
Boat Design" software for tunnel and high-performance vee-hull design,
and "PropWorks2"
software for speed prediction and propeller selection at the AeroMarine
Research web site: http://www.aeromarineresearch.com
