TBDP© Aerofoil designs                           [click for more Aerofoil design]          (click to return to TBDP Features)

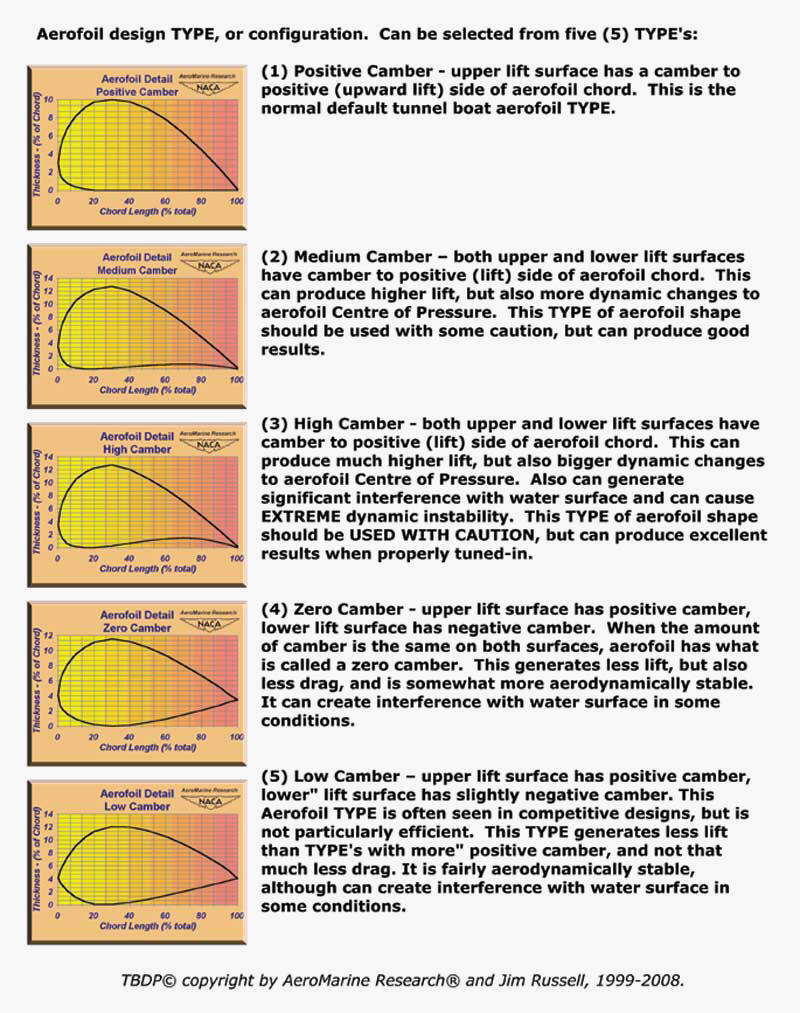

  TBDP©/VBDP© aerofoil dBase maintains aerodynamic properties CL(α,V), CD(α,V), CP(α,V), for each aerofoil template.  [Note: after selecting aerofoil template, the properties of aerofoil are further calibrated using inputs for 'wing thickness', 'tunnel height', and aspect ratio (tunnel width/wing chord)].

[Also: check out animated aerofoil simulation!]

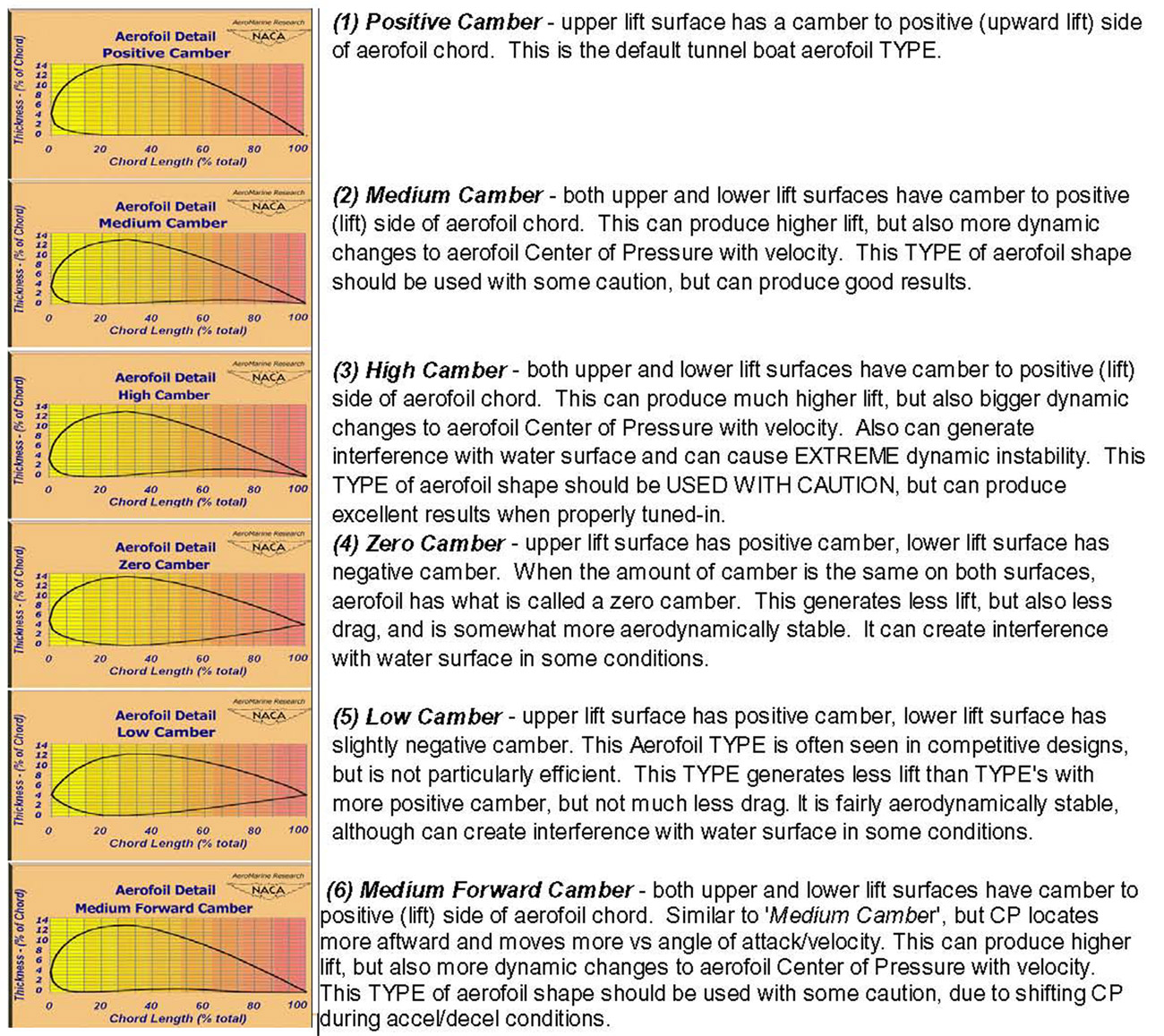

aerofoile types for tunnel boats
check out animated aerofoil simulation!
